Erpen 72 mm Series

The Erpen 72 mm Series offers a “highly insulated” solution for sliding systems, with its enhanced profile depth and strong insulation properties. It combines aesthetic details with technical performance, providing both comfort and energy efficiency.

Premium72 Technical Specifications

Profile Width (mm)	Air Permeability Class	Profile Class TS -5358 / EN 12608	Water Tightness Class
72	4	B	9A
Wind Load Resistance Class	Sound Insulation (dB)	Profile Thermal Transmittance (W/m²K)	Window Thermal Transmittance (W/m²K)	Glass Thickness Options (mm)
C3	40	1.7	1.6	20, 24, 30, 40

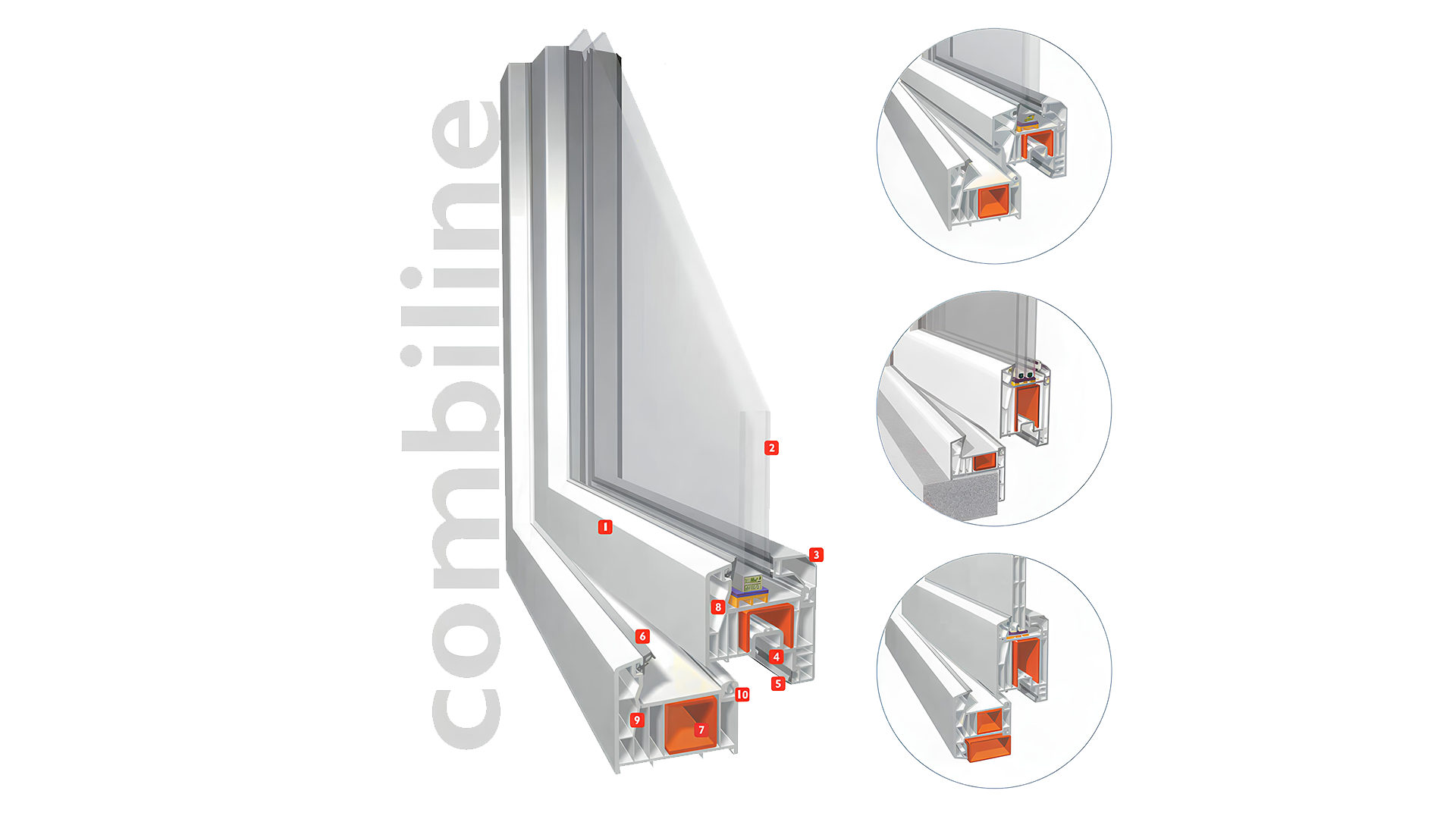

1. Dirt-resistant vectorial exterior surface
2. Glass pocket options: 40 mm (3+9+3+9+3+9+3), 30 mm (4+9+4+9+4), 24 mm (4+16+4), 20 mm (4+12+4), and 4 mm, compatible with glazing bead system
3. Single-hook glazing bead
4. Standard-compliant espagnolette locking system
5. Hidden sash gasket system
6. Integrated gray gasket
7. High-strength hot-dip galvanized steel reinforcement
8. Sloped design for easy water drainage
9. 5-chamber profile structure for improved insulation
10. Single-hook glazing bead slot

Advanced Thermal Insulation & Energy Savings
72 mm profile depth and 5-chamber structure reduce heat loss, providing significant savings in heating and cooling costs.
High Performance & Durability
Galvanized steel reinforcement and robust structure ensure reliability for long-term use.
Aesthetics & Low Maintenance
Dirt-resistant surface coating and modern design reduce maintenance needs while maintaining visual appeal.
Multiple Glass Options
Supports various glass system combinations, providing flexibility for diverse project requirements.

Today, efficient energy use is critical to the sustainability of buildings. A significant portion of heat loss in buildings occurs through windows and glass surfaces. Insulation systems play a significant role in exterior series. The 72 mm Series provides high insulation performance and energy conservation in this regard.

The 72 mm Series complies with TS-5358 / EN 12608 standards. Relevant quality certificates, system documentation, and test reports are available for download in PDF format.

Balcony / terrace sliding systems for residences
Commercial and office building facade designs
Sliding system solutions for buildings requiring high insulation
Modern and performance-oriented architectural projects preference

Premium72 Technical Specifications

Profile Width (mm)	Air Permeability Class	Profile Class TS -5358 / EN 12608	Water Tightness Class
72	4	B	9A
Wind Load Resistance Class	Sound Insulation (dB)	Profile Thermal Transmittance (W/m²K)	Window Thermal Transmittance (W/m²K)	Glass Thicknesses (mm)
C3	40	1.7	1.6	20, 24

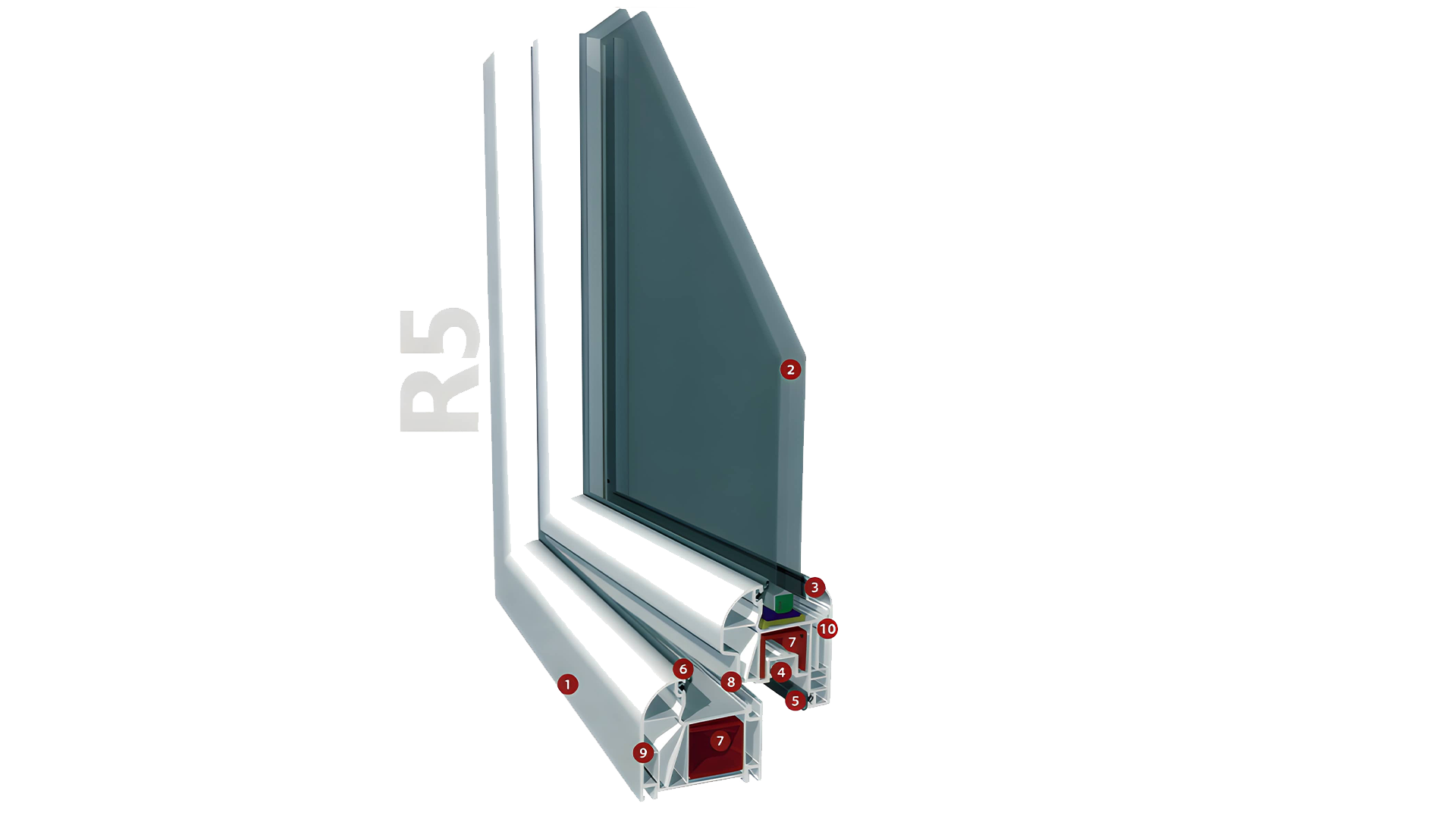

1. Dirt-resistant vectorial exterior surface
2. Glass pocket options: 40 mm (3+9+3+9+3+9+3), 30 mm (4+9+4+9+4), 24 mm (4+16+4), 20 mm (4+12+4) and 4 mm, with suitable glazing bead systems
3. Single-hook glazing bead
4. Standard-compliant espagnolette locking system
5. Hidden sash gasket system
6. Integrated gray gasket
7. High-strength hot-dip galvanized steel reinforcement
8. Sloped design for easy water drainage
9. 5-chamber profile structure for improved insulation
10. Single-hook glazing bead slot

Advanced Thermal Insulation & Energy Savings
72 mm depth and 5-chamber structure reduce heat loss, providing significant savings on heating and cooling costs.
High Performance & Durability
Galvanized steel reinforcement and robust construction ensure long-term reliability.
Aesthetic & Easy Maintenance
Dirt-resistant surface coating and modern design reduce maintenance needs while preserving visual appeal.
Multiple Glass Options
Supports various glass system combinations, allowing flexible project adaptation.

The 72 mm Series complies with TS-5358 / EN 12608 standards. Relevant quality certificates, system documentation, and test reports are available for download in PDF format.

Sliding systems for balconies/terraces in residential buildings
Façade designs for commercial and office buildings
Sliding system solutions for buildings with high insulation requirements
Modern and performance-oriented choice in architectural projects

Premium72 Technical Specifications

Profile Width (mm)	Air Permeability Class	Profile Class TS -5358 / EN 12608	Water Tightness Class
72	4	B	9A
Wind Load Resistance Class	Sound Insulation (dB)	Profile Thermal Transmittance (W/m²K)	Window Thermal Transmittance (W/m²K)	Glass Thicknesses (mm)
C3	40	1.7	1.6	20, 24

1. Dirt-resistant vectorial exterior surface
2. Glass pocket options: 40 mm (3+9+3+9+3+9+3), 30 mm (4+9+4+9+4), 24 mm (4+16+4), 20 mm (4+12+4), 4 mm, compatible glazing bead system
3. Single-hook glazing bead
4. Standard-compliant espagnolette locking system
5. Hidden sash gasket system
6. Integrated gray gasket
7. High-strength hot-dip galvanized steel reinforcement
8. Sloped design for easy water drainage
9. 5-chamber profile for improved insulation
10. Single-hook glazing bead slot

Advanced Thermal Insulation & Energy Savings
72 mm depth and 5-chamber structure reduce heat loss, providing significant savings on heating and cooling costs.
High Performance & Durability
Galvanized reinforcement and robust construction ensure long-term reliability.
Aesthetics & Easy Maintenance
Dirt-resistant surface coating and modern design reduce maintenance needs while preserving visual appeal.
Multiple Glass Options
Supports various glass system combinations, allowing flexible adaptation to projects.

The 72 mm Series complies with TS-5358 / EN 12608 standards. Relevant quality certificates, system documentation, and test reports are available for download in PDF format.

Sliding systems for balconies/terraces in residential buildings
Façade designs for commercial and office buildings
Sliding system solutions for buildings with high insulation requirements
Modern and performance-oriented choice in architectural projects

Premium72 Technical Specifications

Profile Width (mm)	Air Permeability Class	Profile Class TS -5358 / EN 12608	Water Tightness Class
72	4	A	B
Wind Load Resistance Class	Sound Insulation (dB)	Profile Thermal Transmittance (W/m²K)	Window Thermal Transmittance (W/m²K)	Glass Thicknesses (mm)
C3	40	1.7	1.6	20, 24

1. Dirt-resistant vectorial exterior surface
2. Glass pocket options: 40 mm (3+9+3+9+3+9+3), 30 mm (4+9+4+9+4), 24 mm (4+16+4), 20 mm (4+12+4), and 4 mm, with appropriate glazing bead system
3. Single-hook glazing bead
4. Standard-compliant espagnolette locking system
5. Hidden sash gasket system
6. Integrated gray gasket
7. High-strength hot-dip galvanized steel reinforcement
8. Sloped design for easy water drainage
9. 5-chamber profile structure for improved insulation
10. Single-hook glazing bead slot

Advanced Thermal Insulation & Energy Saving
72 mm profile depth and 5-chamber structure reduce heat loss, providing significant savings in heating/cooling costs.
High Performance & Durability
Galvanized reinforcement and robust construction ensure reliability for long-term use.
Aesthetics & Easy Maintenance
Dirt-resistant surface coating and modern design reduce maintenance needs while preserving visual appeal.
Multiple Glass Options
Supports glass systems in various combinations, allowing flexibility for different project requirements.

The 72 mm Series complies with TS-5358 / EN 12608 standards. Relevant quality certificates, system documentation, and test reports are available for download in PDF format.

Sliding systems for balconies and terraces in residential buildings
Façade designs for commercial and office buildings
Sliding system solutions for buildings requiring high insulation
Modern and performance-oriented choice for architectural projects

Download Technical Document

HIGHLY INSULATED ERA IN SLIDING SYSTEMS

Today, the importance of energy conservation and efficient use is increasing, as is the importance of energy resources. In building complexes, 82% of the energy used is for heating. This figure corresponds to 26% of the total energy used in our country. Heat loss in buildings occurs in exterior walls (40%), windows (30%), windows (17%), roofs (7%), and soffits (6%). This highlights housing and PVC window systems as two of the most important areas for energy savings. The fact that energy is the most limited and expensive resource highlights the importance of “energy conservation,” or insulation, in window systems.
